ATOM is a compact and ultra-robust RFID high coded solenoid interlocking device. As typical with products from Fortress Interlocks, ATOM is externally approved and is suitable for applications up to PLe (Cat. 4). The metal housing and high retention force suits ATOM for heavier industry applications. It is designed to be extremely robust, long-lasting and minimal maintenance system that is resistant to shock and vibrations while providing a high level of protection against tampering.
High misalignment in the self-centering actuator covers any movement and inaccuracy in hinged and sliding door machine guarding. Additionally, ATOM’s head has an open design manufactured in stainless steel to prevent dust, dirt and corrosion from impacting performance.
Available in multiple hardware variants, the device can be configured for applications where hazards persist after machinery is powered off. Multiple units can also be connected with OSSD (Output Signal Switching Device) functionality preventing fault masking. The Large LED lens at the base provides clear state indication from all angles and at a distance.
Key Features and Benefits:
-
Solenoid controlled interlock which only allows access when you decide
-
High-coded RFID which prevents actuator substitution
-
Robust actuator design with high locking and retention force of 8kN
-
140mm x 33mm ultra-compact mounting footprint, easy to mount with 2 x M5 screws
-
Safeguarding applications up to PLe and SIL3 rating
-

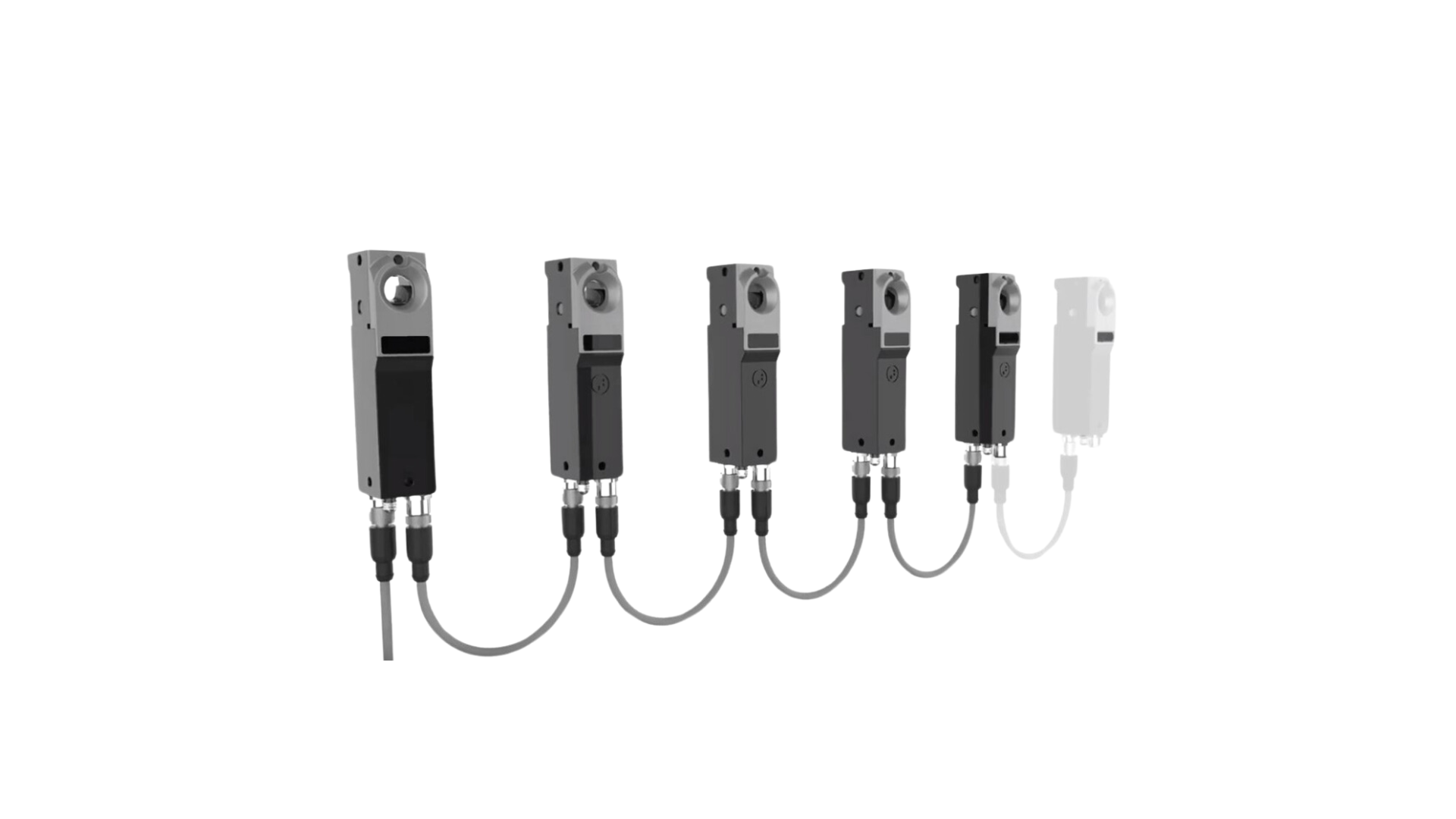

Provides OSSD outputs with Daisy-Chain connection of up to 8 ATOMs in series, reducing your installation costs
-
High Mechanical Misalignment which allows for wider guarding positioning
-
Compact design for installation in discreet locations
-
Sealed to IP65 and IP67
-
TUV Safety Certification Pending
One of our product specialists would be happy to schedule a demo or provide you more information! Give us a call at 800-228-2790.
